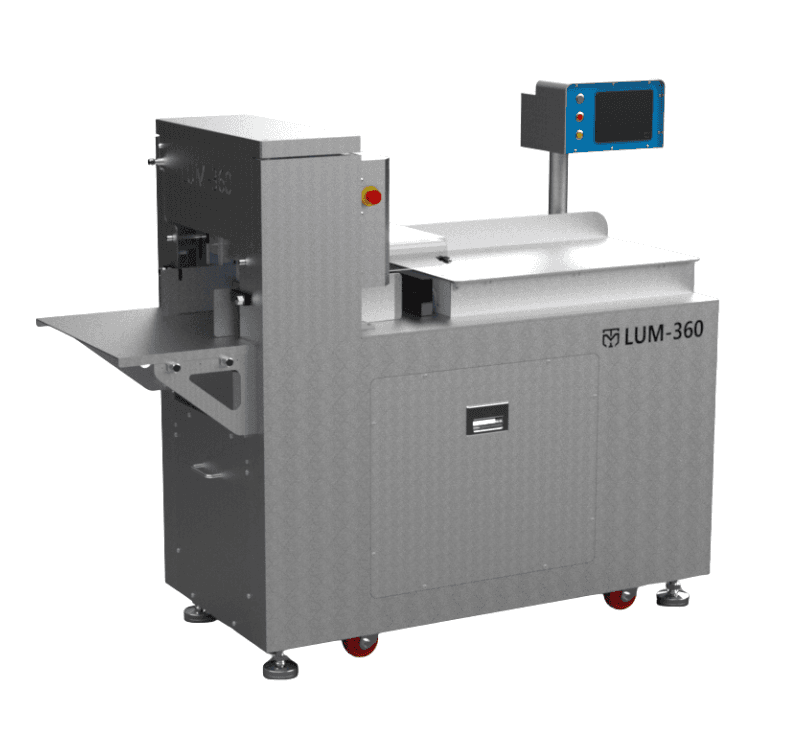

High speed chilled meat slicer LUM-360

Product Features & Highlights

The Premium High-Speed Frozen Slicer: Redefining the Standard of Meat Processing.

"Unmatched Efficiency, Uncompromising Hygiene."

The LUM-360 is a high-speed chilled meat slicer engineered to maximize efficiency on the production floor.

By combining a powerful 3.7kW blade drive motor with a 0.75kW precision servo feed motor, it effortlessly

cuts through thick cuts of meat while ensuring consistent quality.

Notably, it offers exceptional flexibility for fresh meat processing, capable of handling products across a wide

temperature range—from -1°C to ambient temperatures.

Its hygienic, easy-assembly design and intuitive touchscreen interface significantly reduce operator fatigue

while delivering a revolutionary boost to productivity

Beyond simple slicing, the LUM-360 supports everything from ultra-thin deli cuts to thick, steak-style portions.

Adjustable Thickness: 2.5mm to 120mm (Customizable upon request).
Generous Loading Capacity: Max dimensions of 360mm (W) x 300mm (L) x 120mm (H).

Heavy-Duty Cutting: The 3.7kW main blade motor delivers high-torque cutting power that maintains speed even through dense meat resistance.
Precision Feeding: The 0.75kW servo motor allows for precise thickness control in 0.1mm increments, significantly reducing product loss and maximizing yield.

In food machinery, "cleanability" is everything. The LUM-360 features a tool-less disassembly structure for all critical components.

Easy-to-Clean Parts: All product-contact surfaces—including the top presser, infeed guides, discharge table, blade frames (front/inner), and cutting blocks—can be removed without tools for thorough washdown.
Patented Technology: Our unique structure allows for the effortless removal of cutting blocks and tensioners to eliminate organic residue in hard-to-reach gaps—a result of The Master’s proprietary patented technology (pending).

Intuitive Touchscreen: Seamlessly toggle between Auto/Manual modes and configure servo settings (feed speed, limit settings, etc.) with a single touch.
Multi-Layered Safety: Prioritizes operator protection through a comprehensive safety suite, including safety covers, emergency stop switches, and advanced sensor detection systems

Core technologies

Product specification

Item

Specification

Machine size

720(W) x 1,880mm(L) x 1,600mm(H)

Power capacity

5kW(3phase 4wired, 380V, 60Hz)

Motor capacity

Meat size

360mm(W) x 400mm(L) x 180mm(H)

Cutting thickness

2.5mm ~ 120mm (Customizable upon request)

Cutting temperature

-1° ~ room temperature

Air Pressure

5bar

Application
